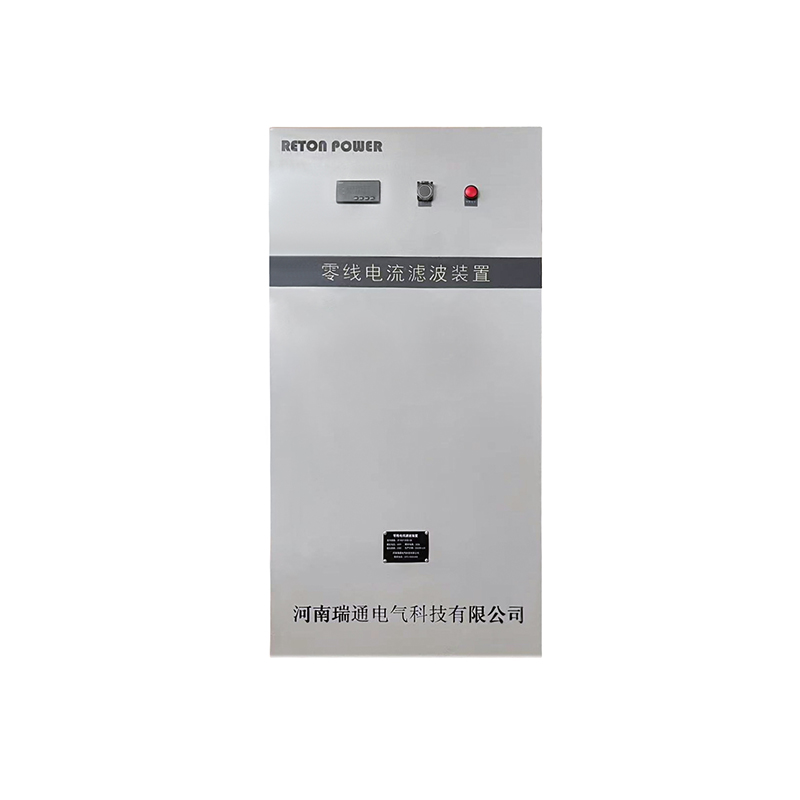

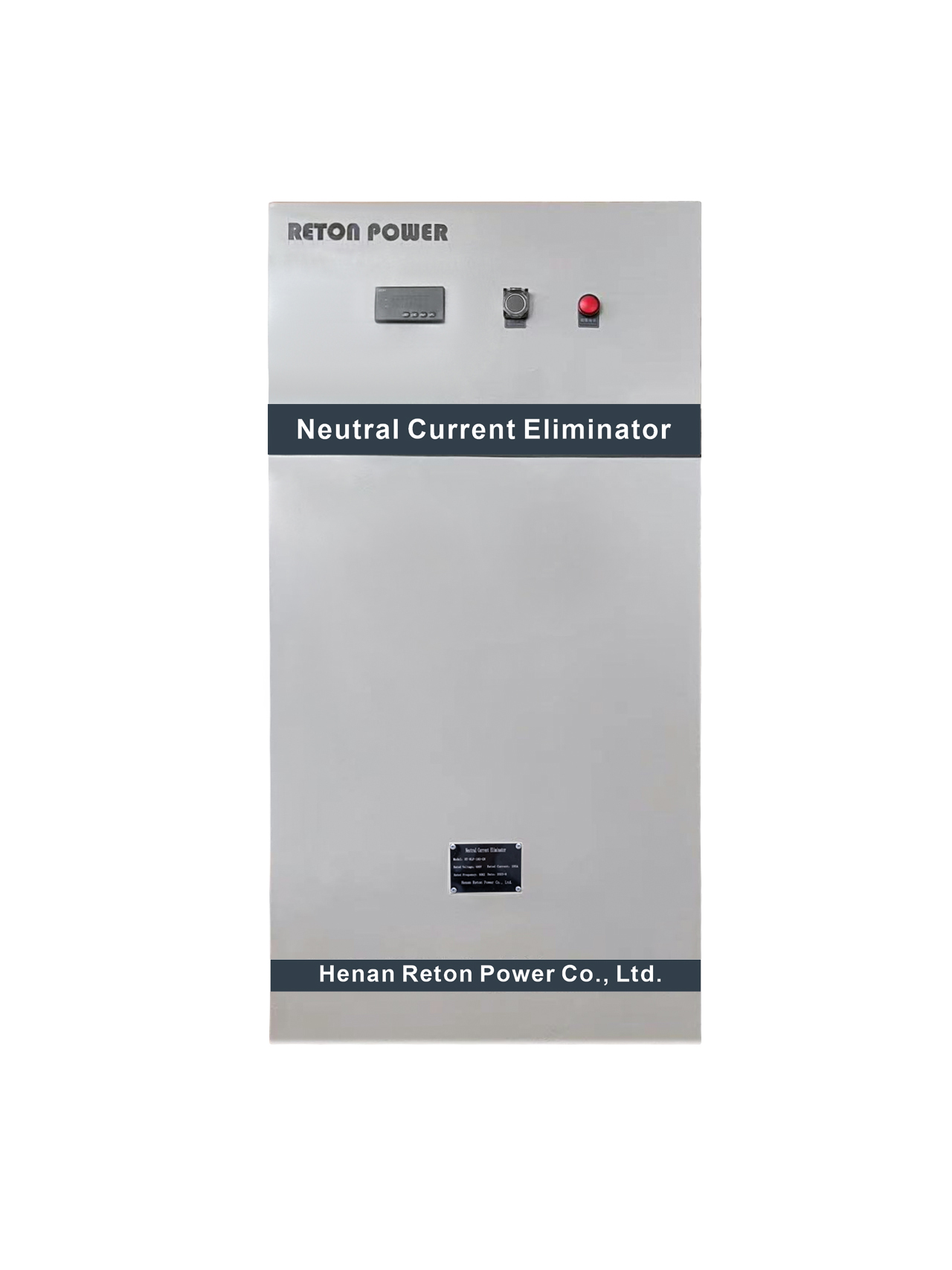

300A Passive Tuned Neutral Harmonic Filter

Rated voltage
400V
 frequency
50Hz
Rated current

300A

waterproof level
IP30
Share
Product Description

In the low-voltage power distribution system of three-phase four-wire system, with the large-scale application of power electronic devices such as LED lighting, switching power supply, uninterruptible power supply, etc., the current on the neutral line in the power distribution system is getting larger and larger. When the neutral line current is greater than the phase current, it is easy to cause the neutral line to be overloaded, the temperature rises, or even burns, and there is a major safety hazard.
After long-term analysis and research on the problem of excessive neutral current, Reton Power has developed the RT-NLF series neutral current filter device.

Specification
Rated voltage 400V rated current 300A
frequency 50Hz Wiring serial zero line
Cabinet size 65*45*125 Function Equipped with residual neutral
current monitoring system and
bypass switch
Governance effect Neutral current filtering rate
reaches more than 80%
Insulation
class
Class F
waterproof level IP30 way of opening the door open the door
Cooling method air cooled Incoming line down line
installation method Floor type installation location indoor

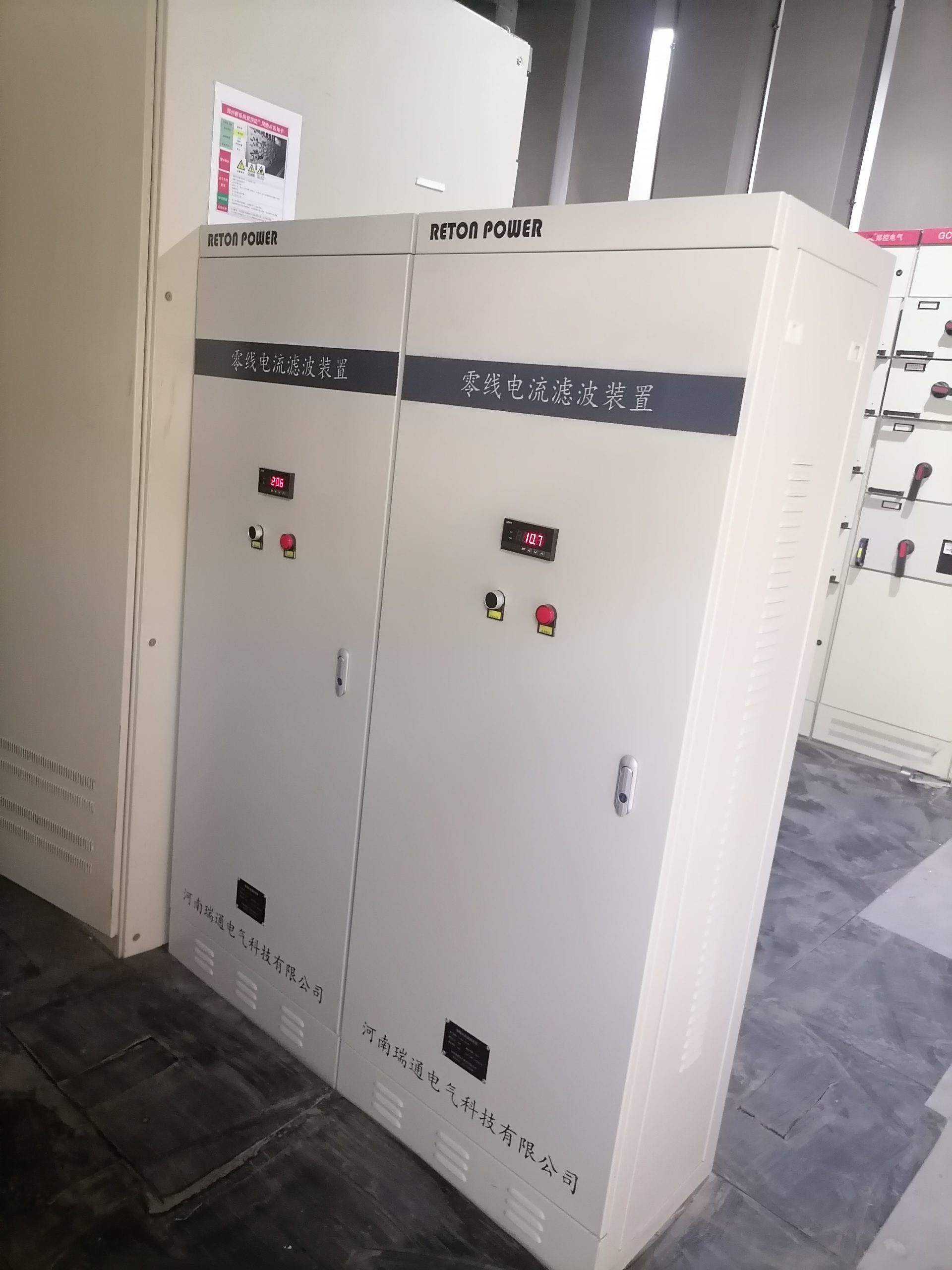

On-site installation
