90KVA Three Phase Voltage Regulator Stabilizer

Rated capacity(KVA)
90 (three-phase)
Special capacity can be customized
Rated operating frequency
50Hz±5%
Rated voltage

380V(line voltage)220V(single phase)

size

84*63*92

Share
Product Description

In the low-voltage power distribution system, the voltage on the user side is too low due to the long power supply line in some station areas. In order to solve the above problems, our company has developed and designed a low-voltage automatic voltage regulator. The low-voltage automatic voltage regulator is mainly composed of a main control module, a voltage regulation module, and a monitoring module. The device can monitor the incoming line voltage in real time. When the incoming line voltage exceeds the normal range, the device will automatically adjust the voltage with load through its own voltage regulating module to keep the output voltage within the acceptable range. The device has the characteristics of small size, low power consumption, automatic adjustment of power supply line voltage, convenient installation and maintenance, and high reliability.

Specification
Model
LSVR-**/**-**
Rated capacity/kVA
90 (three-phase)
Special capacity can be customized
Adjust gear
5 gears
AC input
AC input Rated voltage
380V (line voltage)、220V (single phase)
Voltage regulation range
305V~420V、176V~242V(conventional voltage regulation range)
Special voltage regulation range can be customized
Frequency
50HZ
AC Output
Rated voltage
380V(line voltage)、220V(single phase)
Voltage regulation accuracy
±5%
Output waveform
The output waveform has no distortion and no harmonic increment
Adjustment method
Three-phase separate adjustment, output voltage unbalance is less than 2%.
Protection
Overload
Real-time monitoring of load current, after 3 minutes of continuous overload, switch to bypass output
Short circuit
When a short circuit fault occurs, the molded case circuit breaker cuts off the output instantaneously
Equipment failure
When the voltage regulator itself fails, it will automatically switch to the bypass output
Undervoltage hold
When the input voltage is lower than 176V, the voltage regulator continues to maintain the boost output
Display
voltage/current
LED display
Working status
Stabilized voltage status/mains status/fault status
Instantaneous overload capacity
200%/10S
Noise (1m away from the machine) <45dB at 1m
<45dB at 1m
Cooling method
Self-cooling
environment
Temperature
-10ºC~45ºC
Relative humidity
35%~95% (non-condensing state)

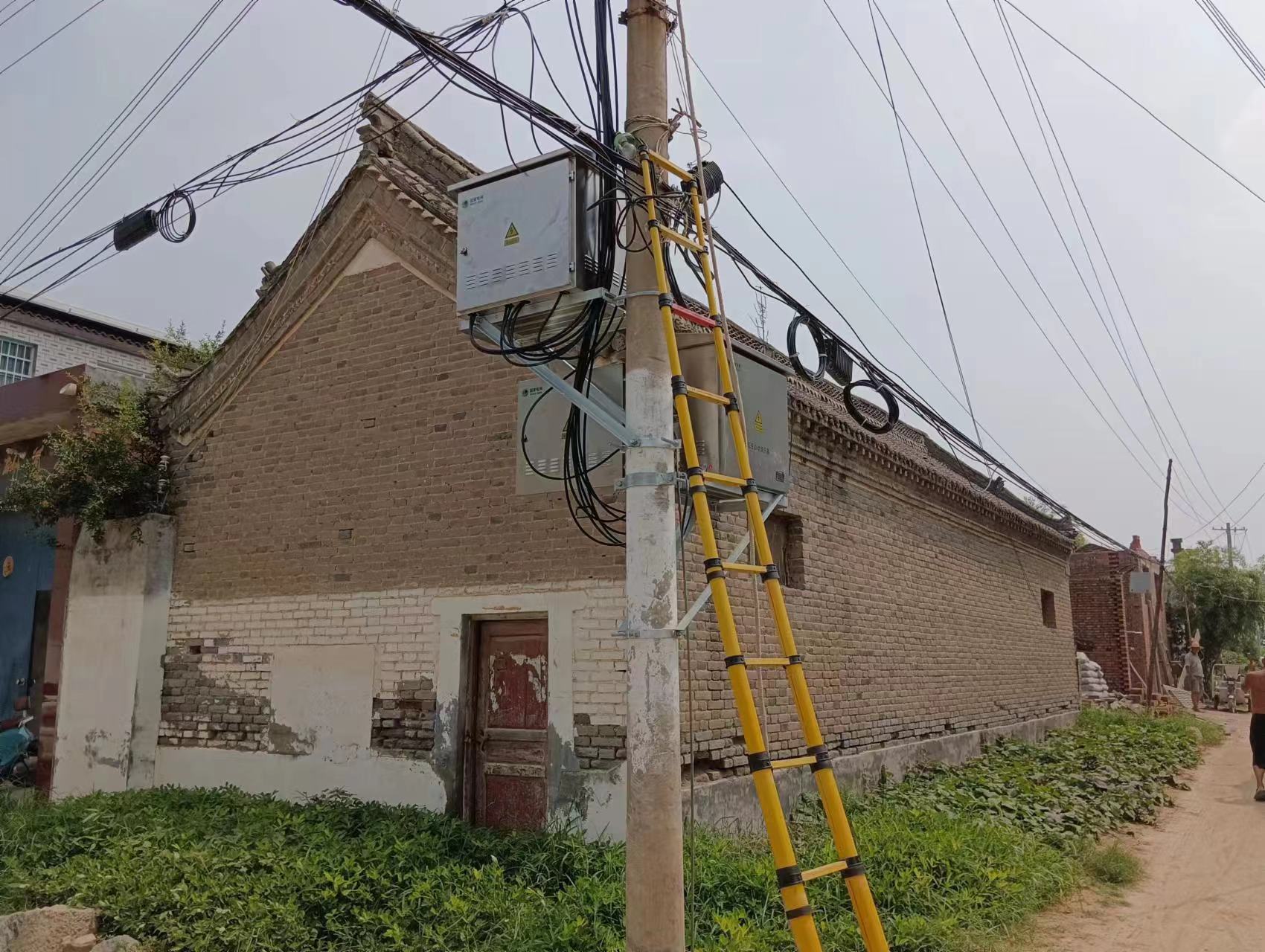

On-site installation
