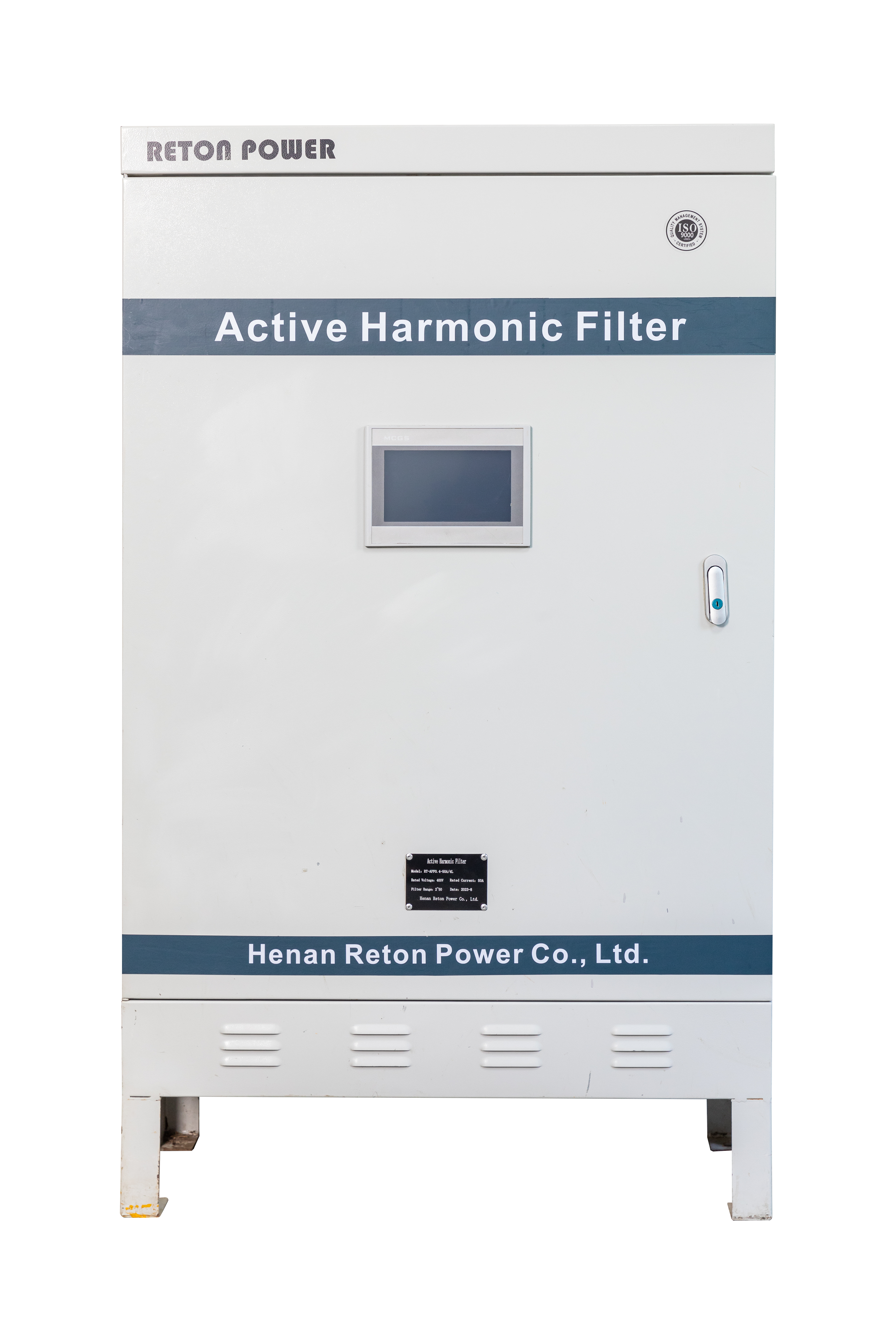

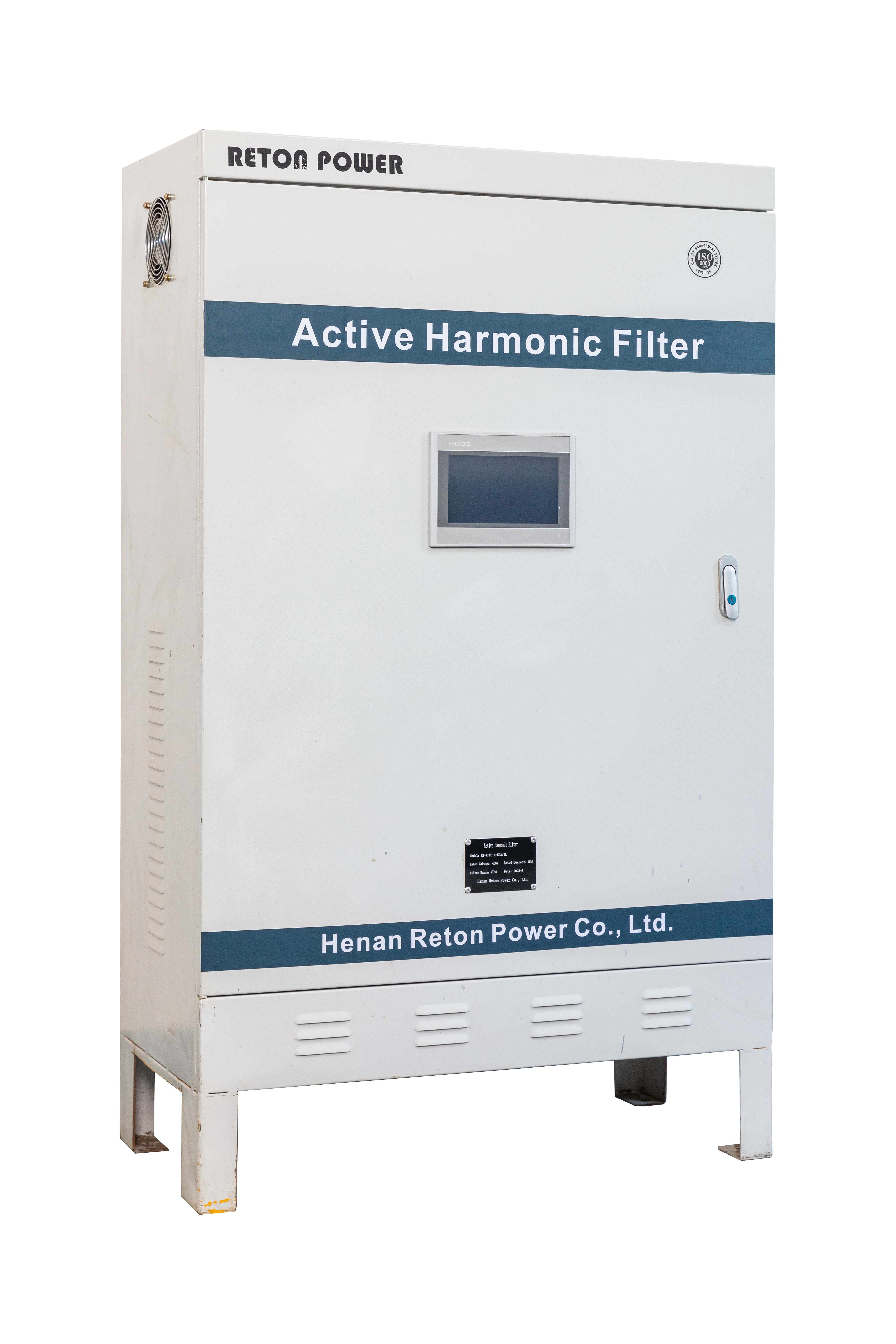

50A Active Power Filter APF Active Harmonic Filter AHF

Rated capacity
50A
Filter range
2~50 harmonics
Filtering ability
≥ 97%
size

47*20*68

Share
Product Description

Active power filter(APF for short) is a perfect comprehensive solution to power quality problems with power grid such as harmonic wave(can filter 2nd to 50th harmonic interference completely), reactive power, and 3 phase load unbalance.

APF is connected in parallel in power grid, to detect the harmonic wave in power grid in real time, generate the reverse-phase compensation current through the converter, and dynamically filter the harmonic wave in power grid.

The operation of APF is unaffected by power grid structure and load type, and it will not produce harmonic oscillation with the system, thus perfectly realizing harmonic wave control of various loads.

APF can also realize dynamic reactive compensation, and control the capacitor switching, to improve the power factor of power grid. Meanwhile, APF has the function of controlling the 3 phase load current unbalance, thus comprehensively solving various power quality problems with power grid.



Specification
Rated capacity 50A
Type 3 phase 3 wire/3 phase 4wire
Rated voltage (V) AC380V±15%/690V±15%
Rated operating frequency 50Hz±5%
Efficiency ≥ 97%
Filtering ability ≥ 97%
Filter range 2~50 harmonics
Parallel capability yes, 10 units maximum
Full response time <10ms
communication Modbus

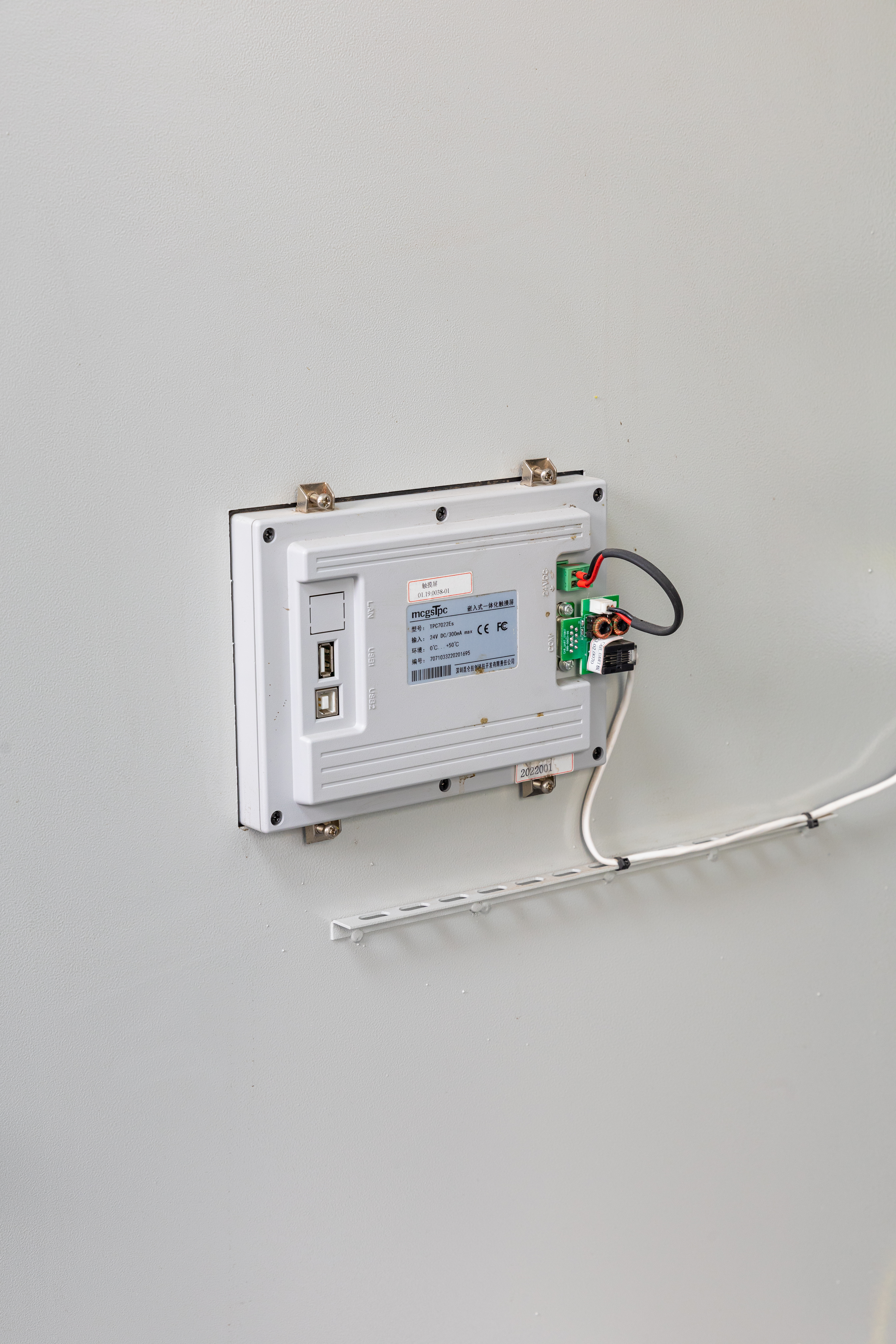

UI touch screen
Protection degree IP30
Noise ≤65dB
Cooling Smart air cooling
Installation method Wall hanging, cabinet
Ambient temperature -5℃~40℃
Altitude Below 1500 meters

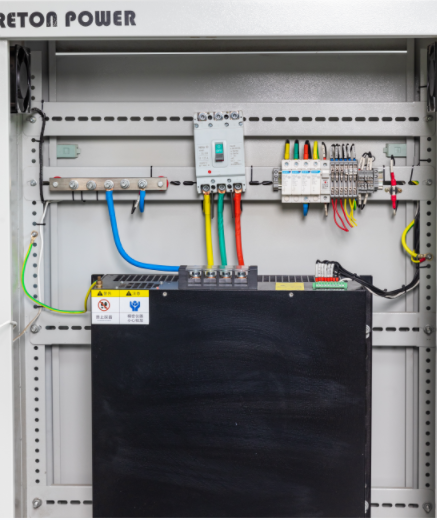

On-site installation

FAQ
Are you a manufacturer or a trading company?

We are manufacturer from Henan,China

How is the quality?

Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Do you accept OEM/ODM orders?

Yes, we can accept OEM/ODM, you could change the logo and function as you want.

What kind of packaging options do you offer?

We use standard export package, but we also customize packaging for our OEM customers.

Which shipping methods do you use?

We offer sea, air, and land freight as well as express delivery. The specific options depend on the quantity of the order.

Which payment method do you accept?

We accept T/T,Credit Card and Western Union.
