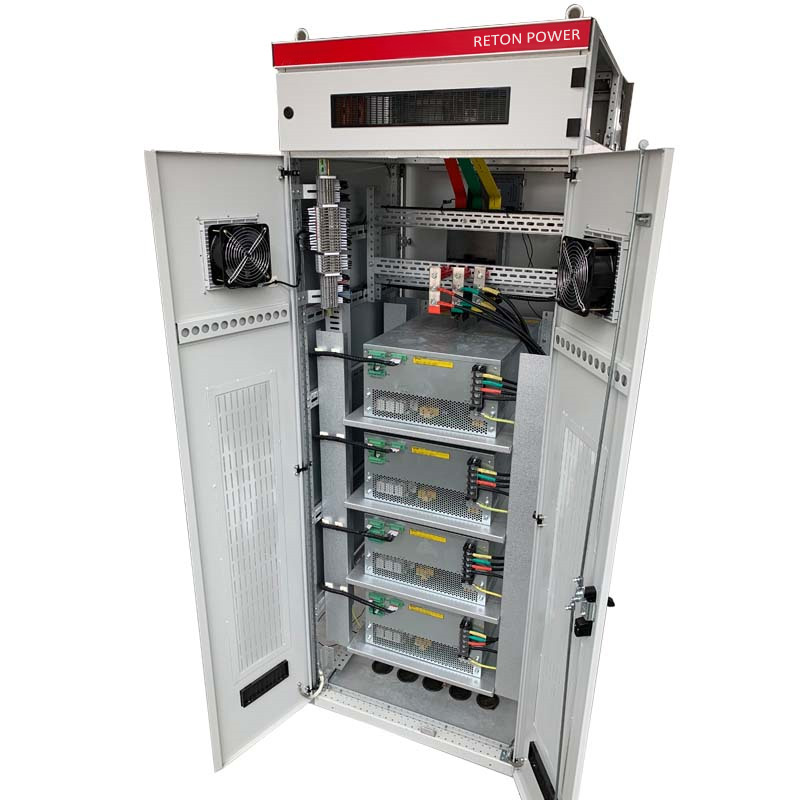

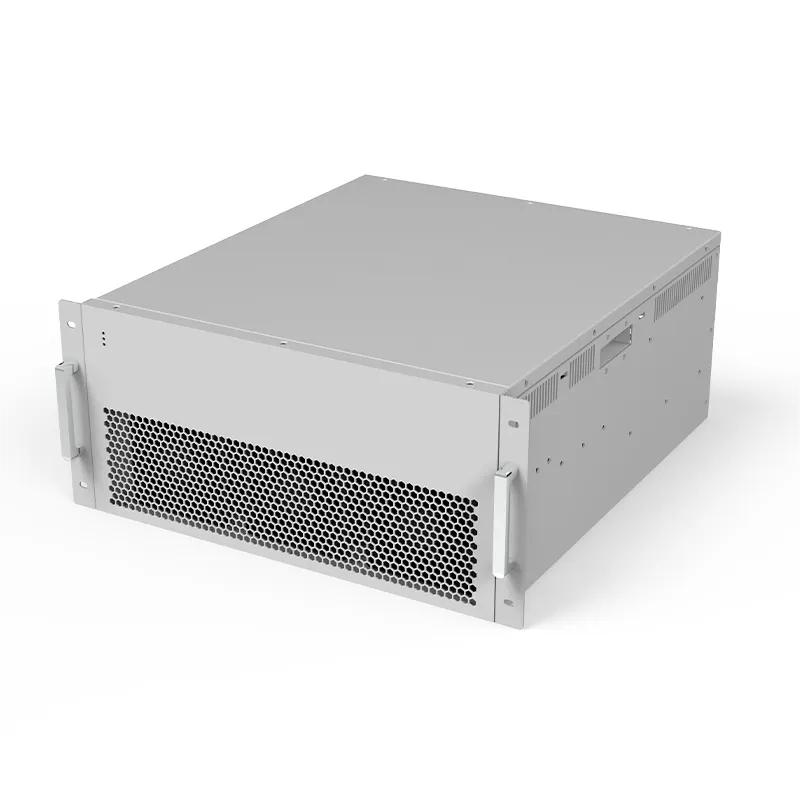

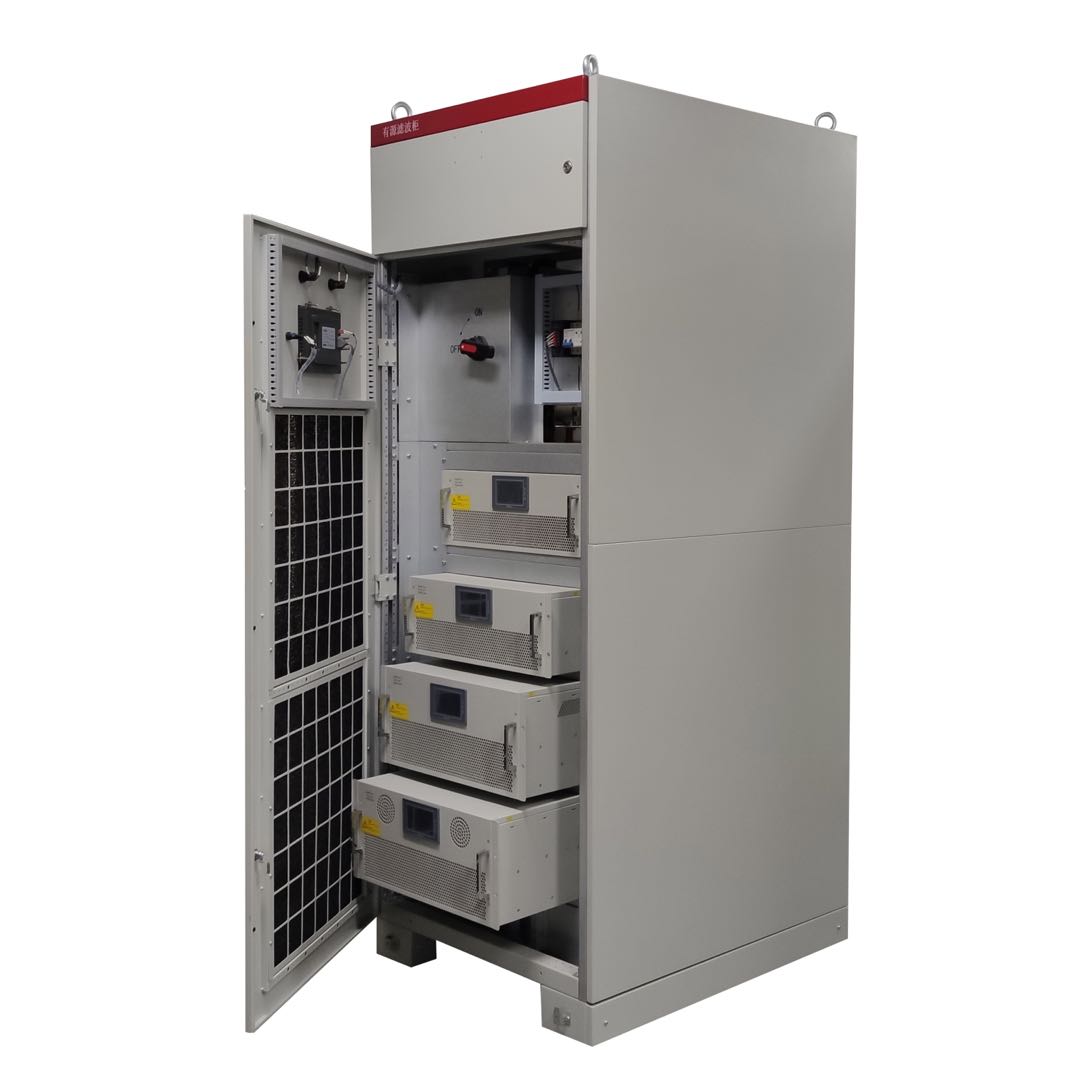

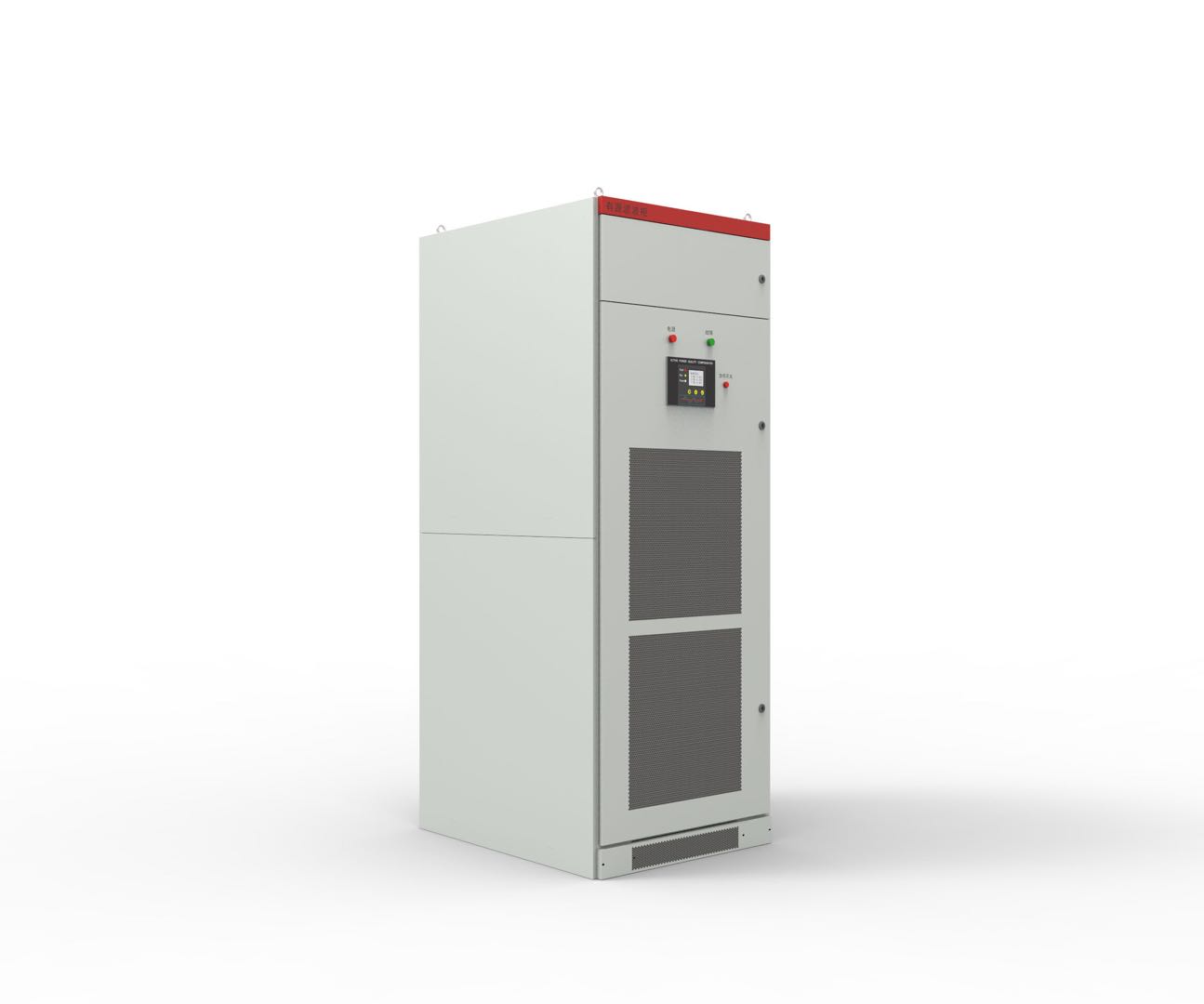

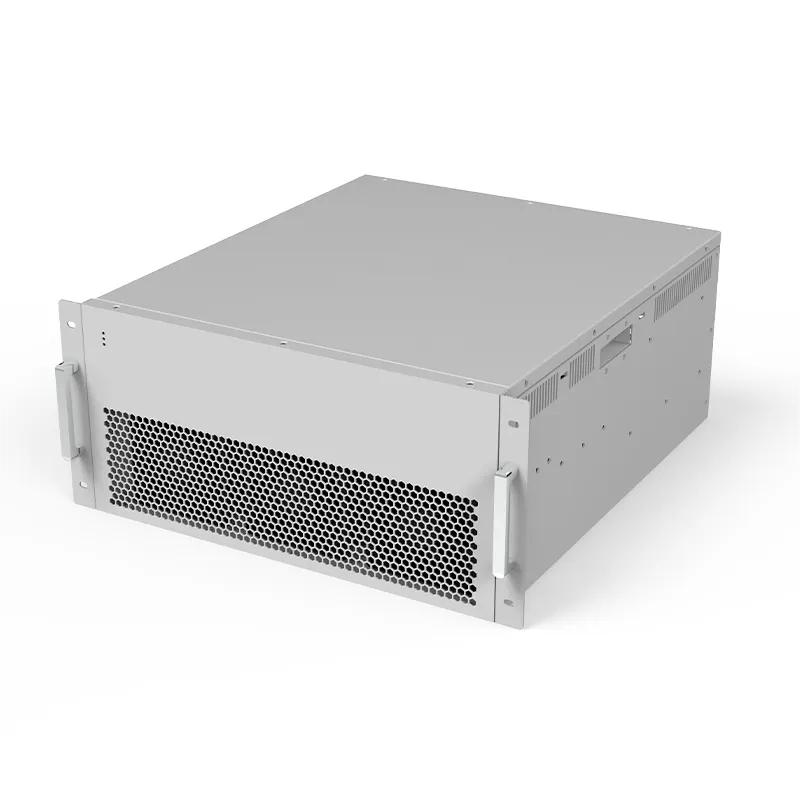

100 kvar SVG Anti-Harmonic Reactive Compensation Static Var Generator

Rated capacity
100 kvar
Rated operating frequency
Reactive power
compensation rate
≥ 95%
Protection degree
Product Description

The principle of the SVG(static var generator) is very similar to that of Active Power Filter,When the load is generating inductive or capacitive current,it makes load current lagging or leading the voltage.

SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side,which means fundamental power factor is unit.

SVG is also capable of correcting load imbalance.

Rated capacity 35 kvar 50 kvar 75kvar 100 kvar 150kvar
Rated voltage (V) AC380V±15%/660V+15%
Type 3 phase 3 wire/3 phase 4wire
Rated operating frequency 50Hz±5%
Protection function Overload protection,hardware over-current protection,over-voltage protection, power grid voltage imbalance protection,power failure protection,over-temperature protection,frequency anomaly protection, short circuit protection,etc
Feature selection Deal with reactive power
Deal with harmonics and reactive power
communication Modbus RTU, RS232
UI  touch screen
Switching frequency 20kHz
Reactive power
compensation rate
Parallel capability yes
Protection degree IP30
Response time <5ms
Noise    ≤65dB
Cooling Forced air cooling
Installation method Wall hanging, cabinet
Ambient temperature  -5℃~40℃
Humidity <90%,the average temperature is below 20℃ without condensation on the surface.
<50%,the average temperature is 40℃.
Altitude Below 1000 meters
Size 800*1000*2200(mm)

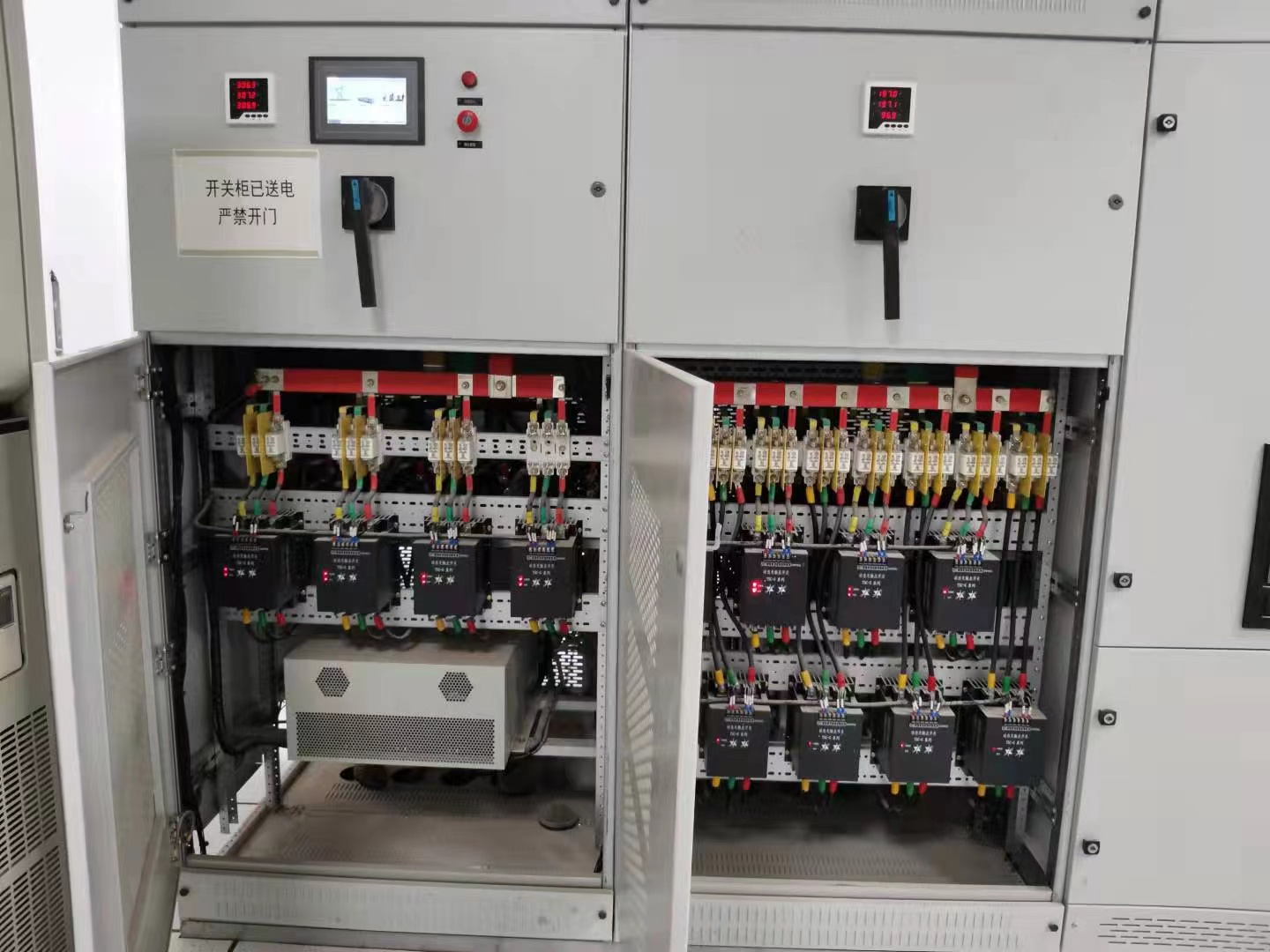

On-site installation
