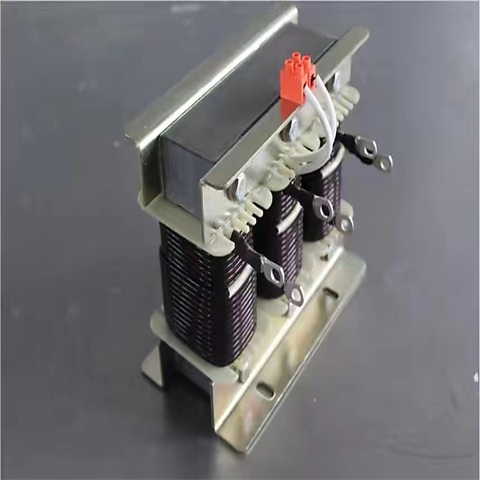

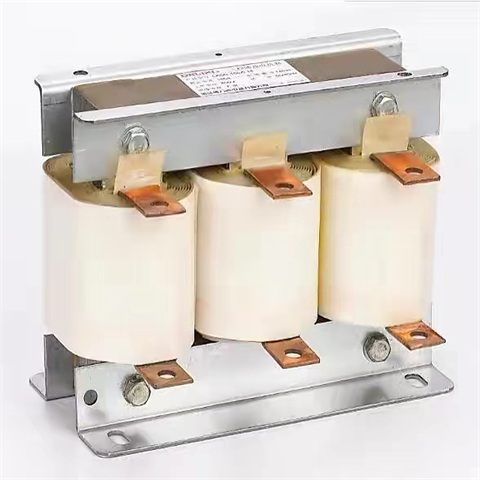

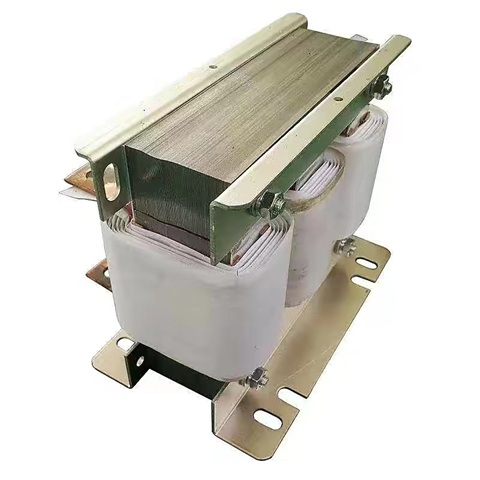

Low Voltage Series Reactor

Capacitors is usually affected by armonic current, closing inrush current and switching overvoltage while the capacitor compensate capacitive reactive power, so in order to improve the quality of power and extend the service duration of capacitors, series reactor shall be installed in front of capacitors to suppress or absorb harmonics and protect capacitors from harmonic voltage and current, and impulse voltage.

Main Characteristics

1.Three-phase dry type iron core reactor;

2.Iron core made of cold-rolled silicon steel sheet unitized to ensure low temperature-rise and low noises while reactors under service.

3.Compact configuration and easy connection to greatly lower the price of cabinet

1.Voltage ratings: 0.4KV、0.45KV、0.48KV、0.525KV、0.66KV、0.69KV，1.14KV；

2.Reactance ratio: 1%、4.5%、5.6%，6%，7%，12%，13.8%,14%

3.Power frequency withstanding level: 5kV/min

Insulation level： Class B, F, H

noises level ≤30dB

Overcurrent : 1.35 times of rated current
