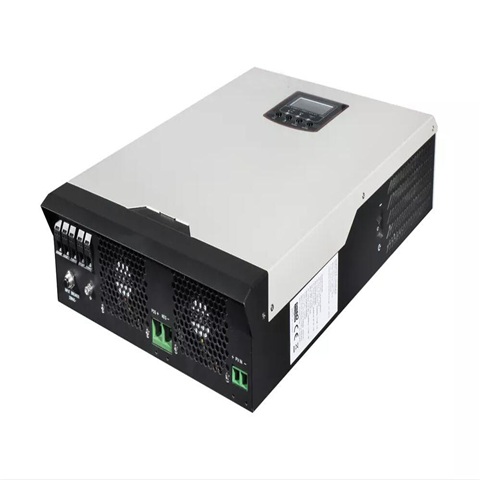

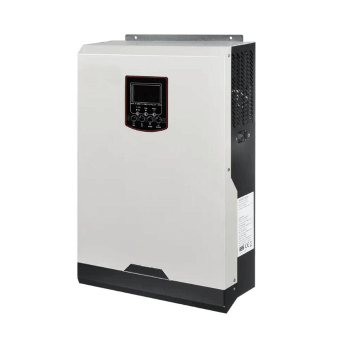

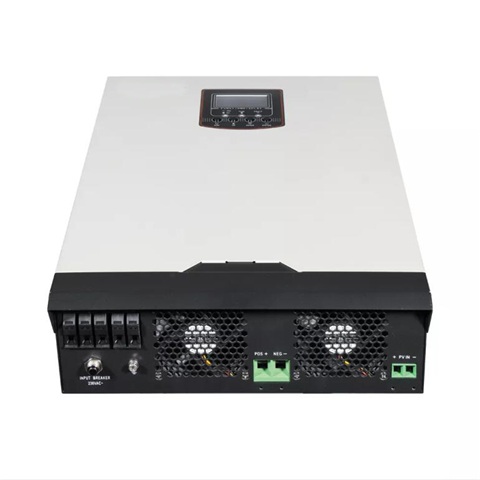

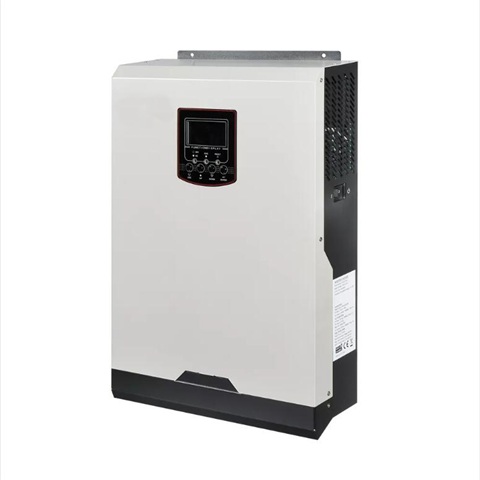

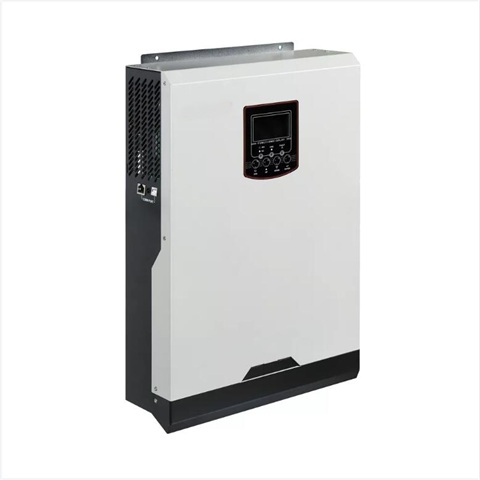

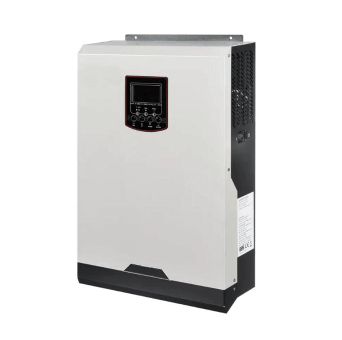

3.5 kw 5.5kw Solar Hybrid Solar Power Inverter 24v 220v MPPT Controller Off Grid Power Inverter

Output Voltage 230V AC
Output Frequency 50HZ/60HZ
Size 100*300*440mm
Inverter Efficiency 90%-93%

Free Quote [email protected]

Product Description Specification Packing & Delivery FAQ Related Products

Product Description

1. High efficiency pure sine wave inverter(PF=1);Wide PV input range (120Vdc-500Vdc) 80A MPPT SCC; Intelligent 3 stage 60A AC battery charger.

2. Surges to 2X continuous power for 5 seconds for motor loads.

3. Intelligent functionality enables utility and solar input prioritization.

4. Wide ulility input range (90Vac~280Vac ) for unreliable grid even in the most challenging environments.

5. Field serviceable with replacement boards and spare parts.

6. Monitor, troubleshoot, or communication with USB/RS 232.

7. System configures quickly into compact, wall-mounted system.

8. This series inverters can work without batteries when there is the sun.

Specification

RATED POWER	3200VA/3200W	3500VA/3500W	5000VA/5000W	5500VA/5500W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers) ；90-280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode)	230VAC±5%
Surge Power	6000VA	7000VA	10000VA	11000VA
Efficiency(Peak)	90%-93%
Transfer Time	10ms(For Personal Computers) ；20ms(For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC		48VDC
Floating Charge Voltage	27VDC		54VDC
Overcharge Protection	33VDC		63VDC
SOLAR CHARGER & AC CHARGER
Max.PV Array Open Circut Voltage	500VDC		500VDC
Max.PV Array Power	4000W	5000W	5000W	6000W
MPP Range@operating Voltage	120-450VDC		120-450VDC
Max.Solar Charge Current	80A	100A	80A	100A
Max.AC Charge Current	60A		60A
Max.Charge Current	100A		100A
PHYSICAL
Dimension， Dx WxH(mm)	115x300x400
Net Weight(kgs)	9		10
Communication Interface	USB/RS 232/RS 485/Bluetooth/Dry-contact
ENVIRONMENT
Humidty	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
Approximate Back-Up TimeTable：
Model	Backup Time@24Vdc100Ah(min)		Backup Time@24Vdc200Ah(min)
3.2KVA	359		880
	54		131
	22		54
Model	Backup Time@48Vdc100Ah(min)		Backup Time@48Vdc200Ah(min)
5KVA	490		1030
	72		172
	32		72
