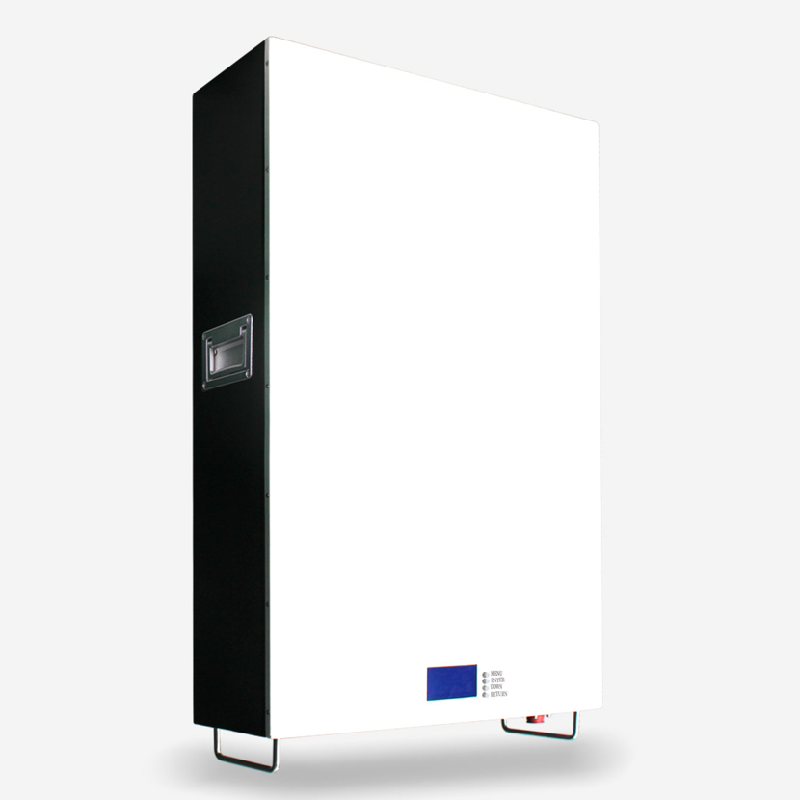

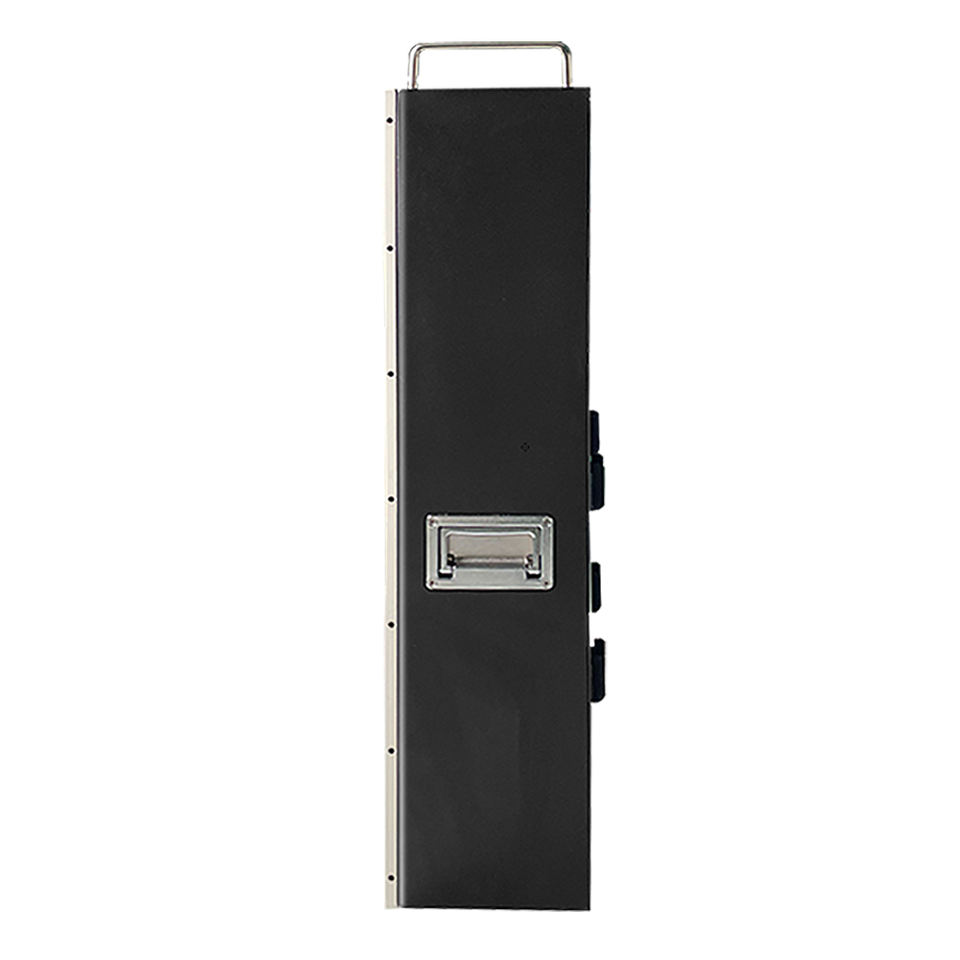

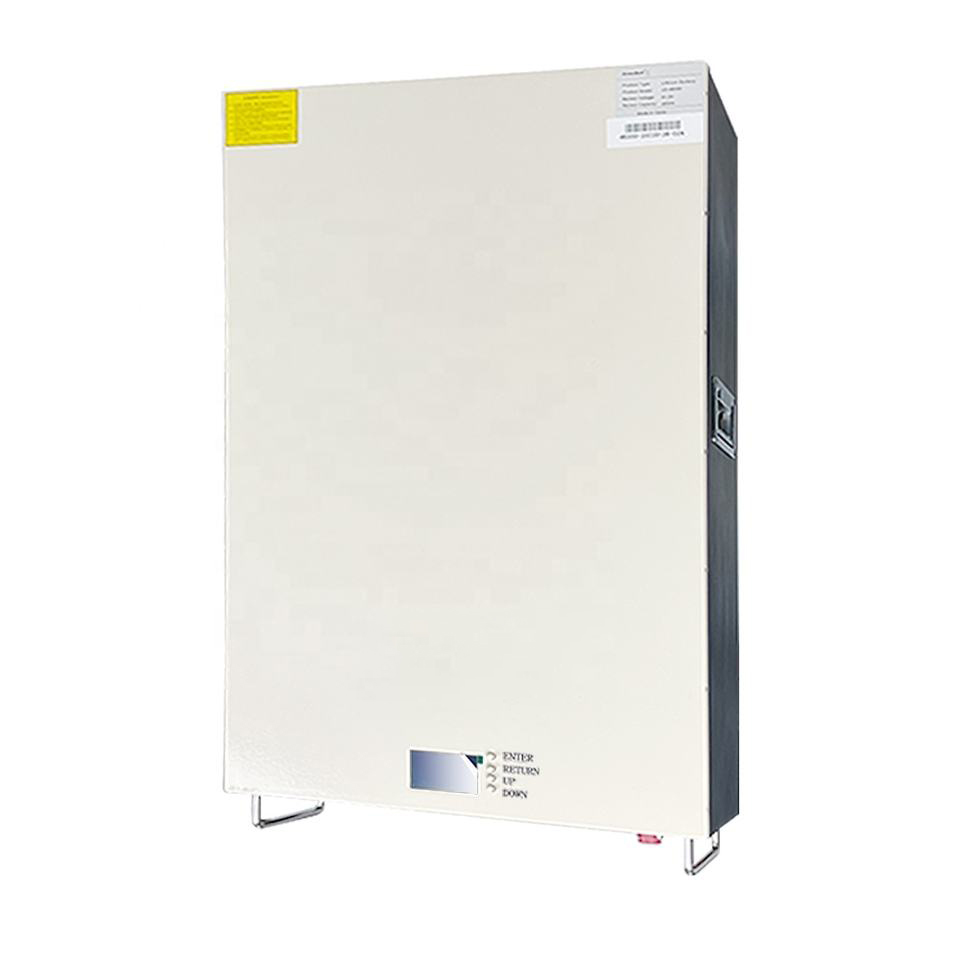

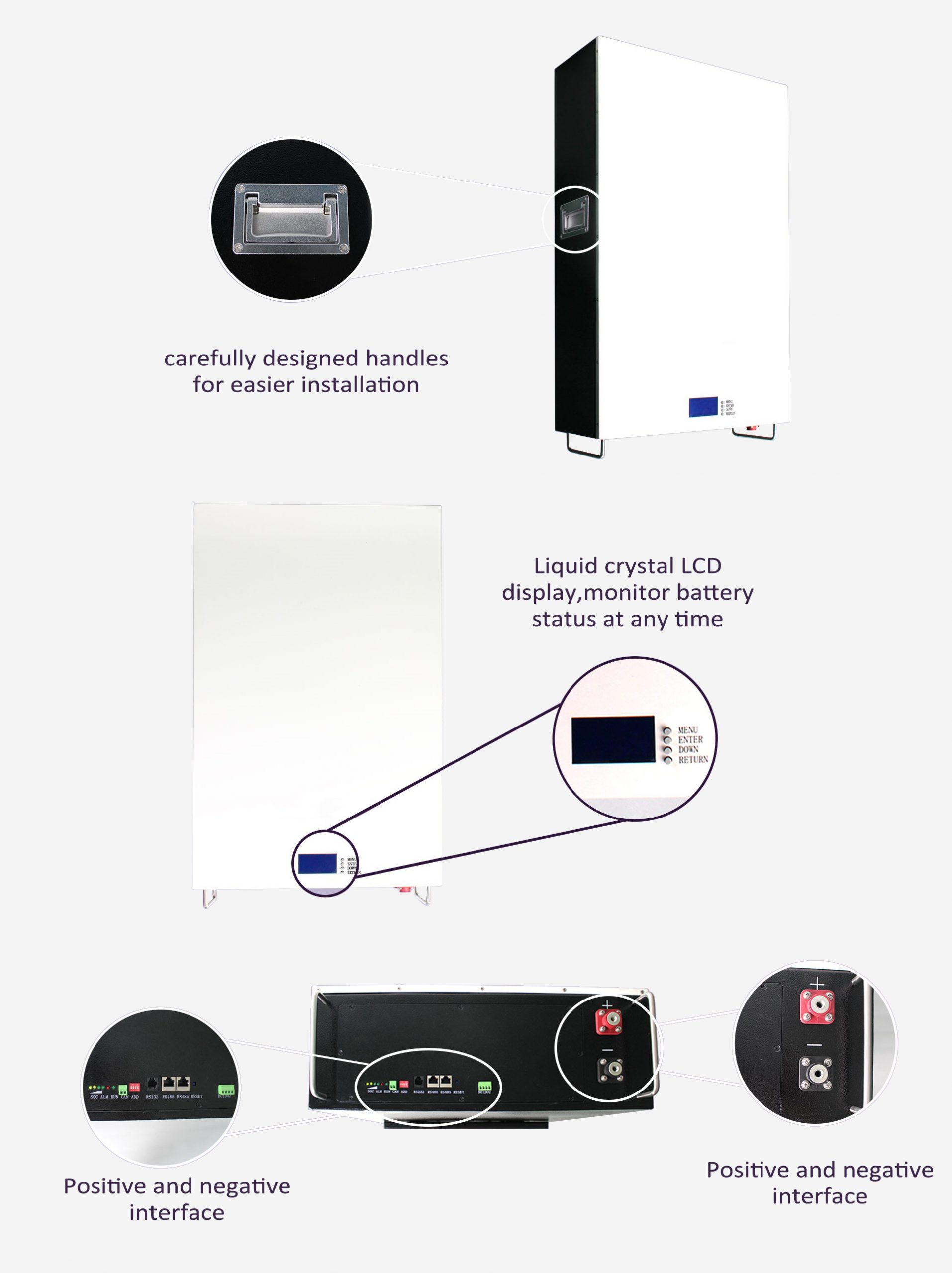

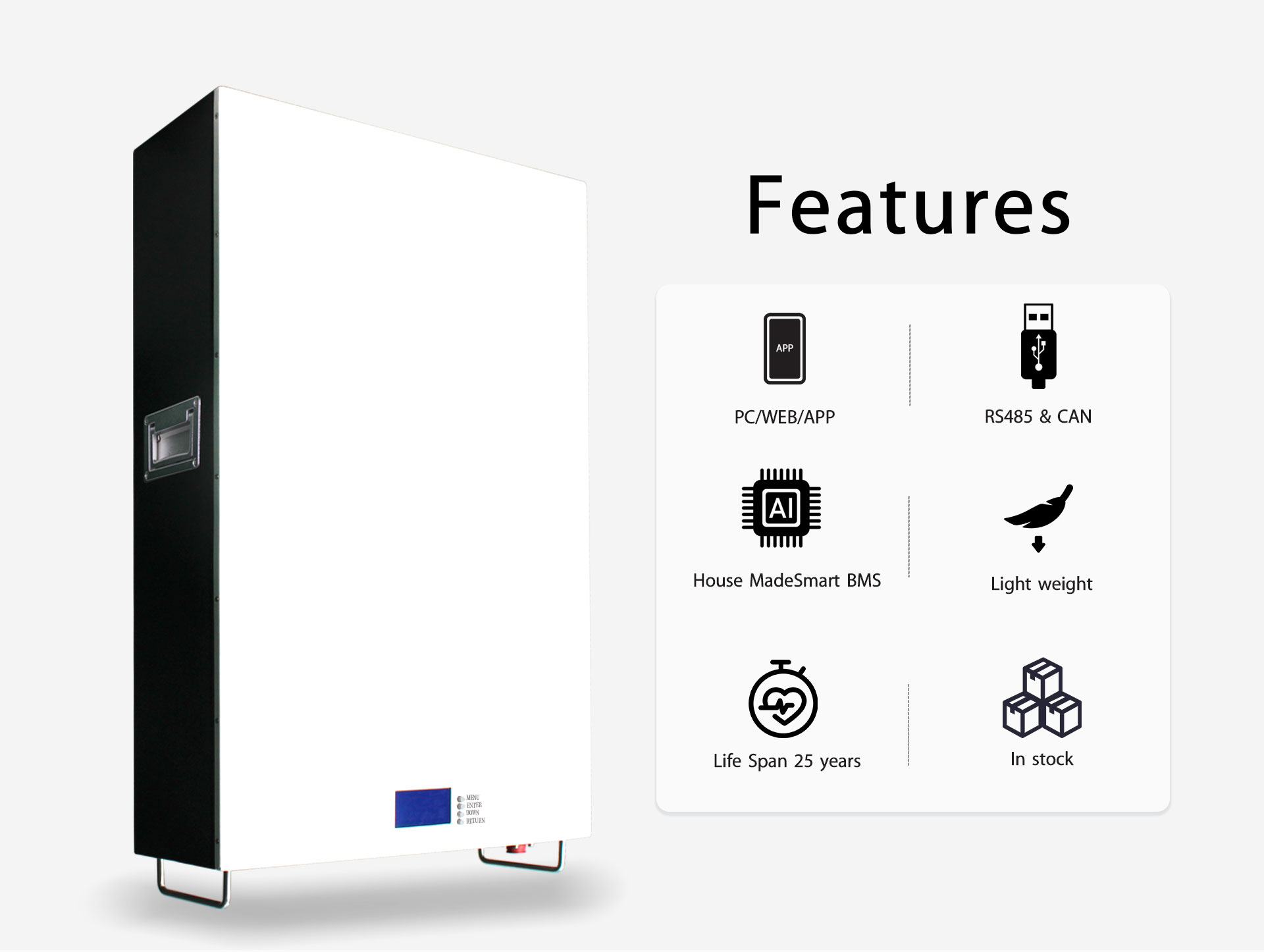

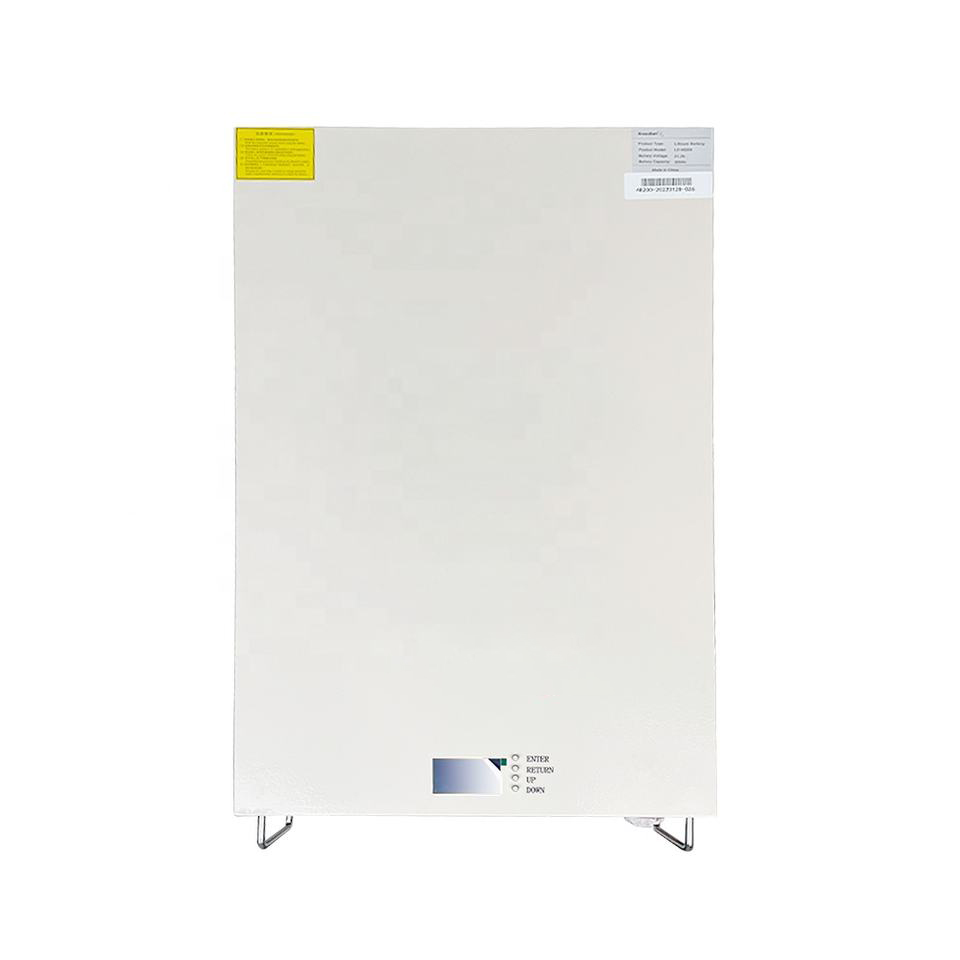

48V 200Ah LiFePO4 Battery

Type LiFePO4	Capacity 200Ah
Voltage 48V	Current 100A/200A

Free Quote [email protected]

Product Description Specification Packing & Delivery FAQ Related Products

Product Description

Specification

Model	100A	200A
Battery Type	LiFePO4
Usable Capacity	9600 Wh @C2, 25°C
Nominal Voltage	48 VDC
Operating Voltage Range	39VDC – 54 V DC
Operating Temperature Range	~20°C – 60°C
Cycle Life @ 100% DoD	> 3500 cycles (9600Wh @C2, 25℃)
Cycle Life @ 80% DoD	> 5000 cycles (7680Wh @C2, 25℃)
Cycle Life @ 70% DoD	> 7000 cycles (6720Wh @C2, 25℃)
Charge Current (max.)	50A continuous( 25℃)	100A continuous（25℃）
Discharge Current (max.)	100A continuous( 25℃)	200A continuous（25℃）
Over-charge protection	3.65V
Over-charge release	3.40V
Under-discharge protection	2.60V
Under-discharge release	2.70V
Over-current protection	110A	210A
Over-current delay	10 S
Charging over-temperature protection	55℃
Charging under-temperature protection	0℃
Discharge over-temperature protection	60℃
Discharge under-temperature protection	-20℃
Balance current	≤200mA
Balance Condition	≥3.35V, voltage difference 50mV
Self-discharge Rate	< 3% per month
IP-Protection	IP51
Safety certification	UN38.3
Communication port with inverter	CAN or RS485
Dimensions (mm)	482mm x 410mm x 355mm (8U) (W x D x H)
Weight (kg)	85kg

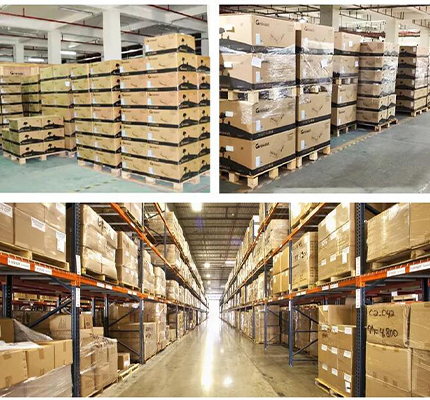

Packing & Delivery

FAQ

Are you trading company or manufacturer?
We are a professional manufacturer in China.

Where is the factory of Ruitong?
Zhengzhou City,Henan Province, China

What can I get to be Retonpower agent?
*More technical training, support and more free spare parts.
*Special price support for Retonpower agent.
*Advertising & publicity expenses share for Retonpower brand.
*Annual bonus, based on your annual sales amount.
*Fast good delivery as we have regular products in stock.

What can you buy from us?

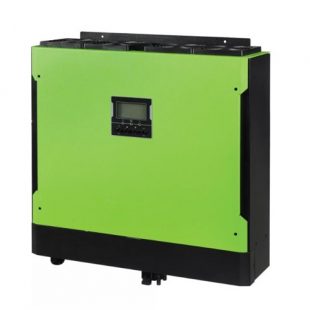

Hybrid inverter, off grid solar inverter, solar panel,lithium iron battery ,storage solar system and electrical equipment.
