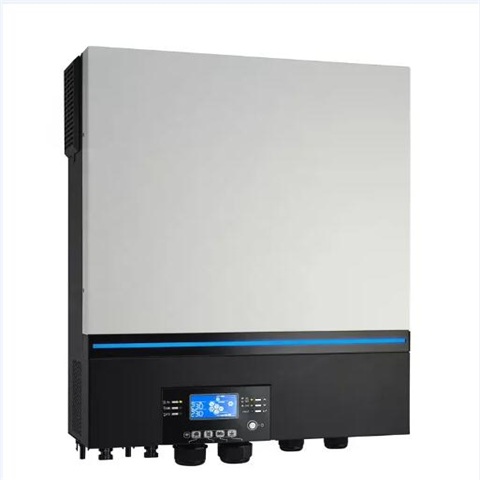

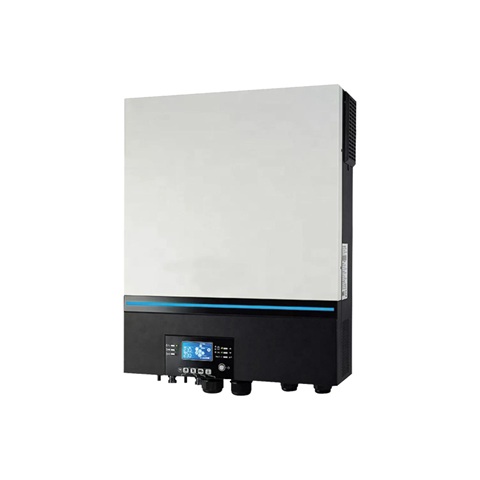

7.2kw / 8kw Hybrid Solar Inverter Work Without Battery Support Parallel

  • Output Voltage 230V AC
  • Output Frequency 50HZ/60HZ
  • Size 100*300*440mm
  • Inverter Efficiency 90%-93%
Product Description
  • Customizable status LED bar with RGB lights
  • Built-in WiFi for mobile monitoring (Android/iOS App are available)
  • Support USB on the go function
  • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Configurable AC/PV output usage timer and prioritization
  • Selectable high power charging current
  • SElectable input voltage range for home appliance and personal computers

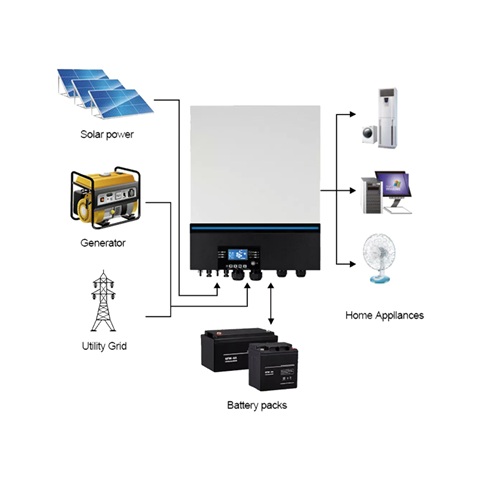

  • Compatible to Utility Mains or generator input
  • Built-in anti-dust kit
  • Optional DC output for DC fan, LED bulb, router and so on
  • Parallel operation up to 6 units only available for 7.2kVA
Model Max 3600 Max 7200/Max 8000 Max 6500
Parallel 3600VA / 3600W 7200VA / 7200W 6500VA / 6500W
8000VA / 8000W
Capacity No Yes,6 units Yes,6 units
Selectable Voltage Range 230VAC 120VAC
Frequency Range 170-280 VAC (For Pe170-rsonal Computers) 90-140 VAC (For Personal Computers)
90-280 VAC (For Home Appliances) 80-140 VAC (For Home Appliances)
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5% 120 VAC ± 5%
Surge Power 7500VA 15000VA 15000VA
Efficiency (Peak) 90%~93%
Transfer Time 15ms (For Personal Computers) 20ms (For Home Appliances)
Waveform Pure sine wave
No Load Power Consumption <45W <70W  <70W
Battery Voltage 24 VDC 48 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC 54 VDC
Overcharge Protection 33 VDC 66 VDC 66 VDC
Solar Charger type MPPT
Max. PV Array Open Circuit Voltage 500VDC 500VDC 250VDC
MPP Range @operating Voltage 120~450VDC 90~450VDC 90~230VDC
Max. PV Array Power 4000W 8000W(4000W×2) 8000W(4000W×2)
Max. Solar Charge Current 80A 80A 120A
Max. AC Charge Current 80A 80A 120A
Max. Charge Current 80A 80A/120A 120A
Dimension, D x W x H (mm) 147.4 x 432.5 x 553.6
Net Weight (kgs) 14.1 18.4
Communication Interface USB/RS232/RS485/WiFi/Dry-contact
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10° C to 50° C -10° C to 40° C
Storage Temperature -15° C to 60° C

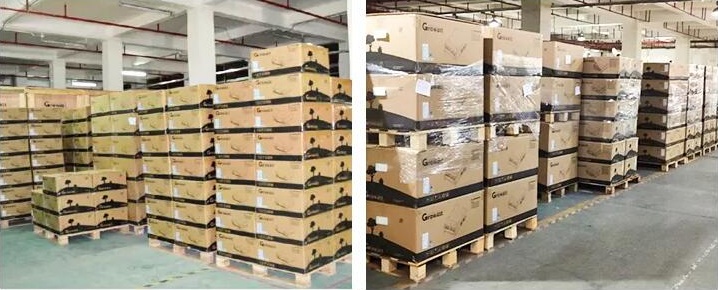

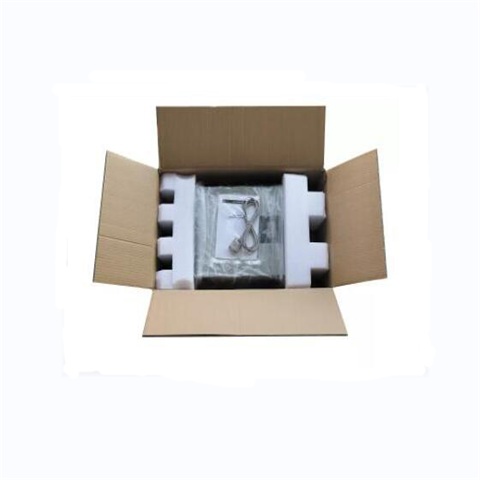

Packing & Delivery

Are you trading company or manufacturer?

We are a professional manufacturer in China.

Where is the factory of Ruitong?

Zhengzhou City,Henan Province, China

What can I get to be Retonpower agent:

*More technical training, support and more free spare parts.
*Special price support for Retonpower agent.
*Advertising & publicity expenses share for Retonpower brand.
*Annual bonus, based on your annual sales amount.
*Fast good delivery as we have regular products in stock.

What can you buy from us?

Hybrid inverter, off grid solar inverter, solar panel,lithium iron battery ,storage solar system and electrical equipment.
