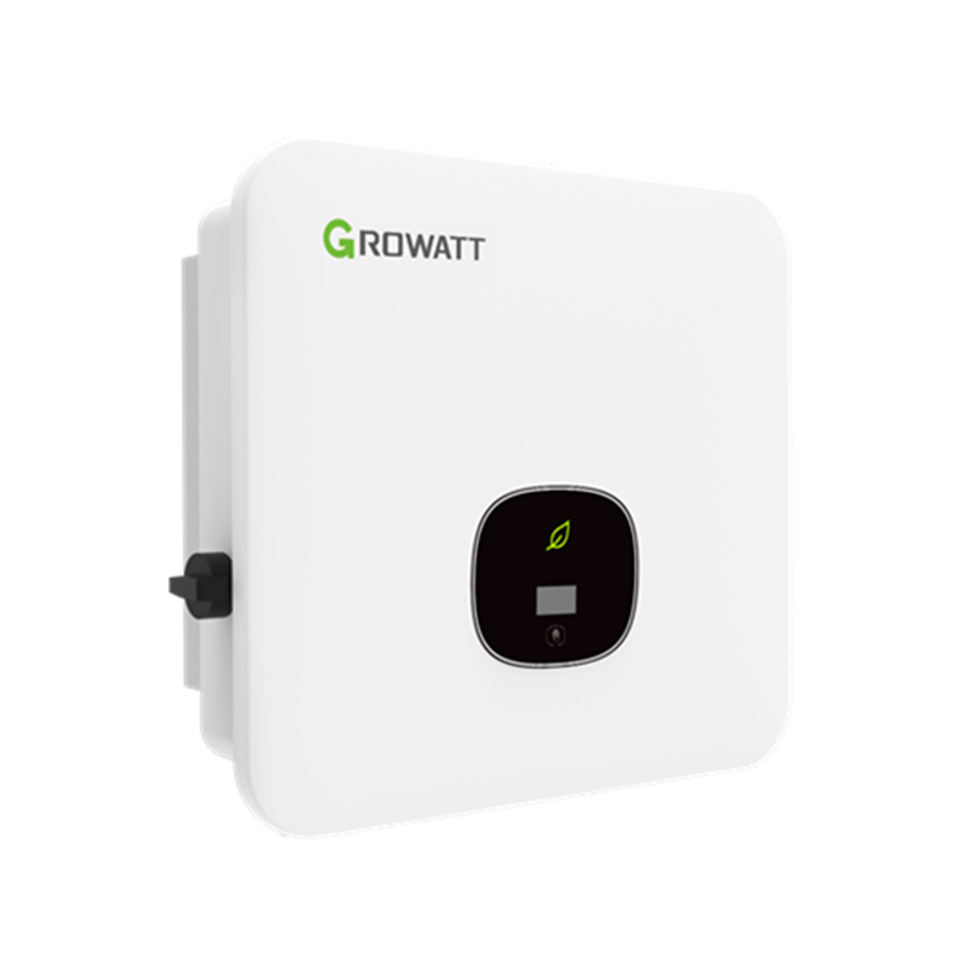

| Model |
MOD 12KTL3-X |
MOD 13KTL3-X |
MOD 15KTL3-X |
| Input data (DC) |
Max. recommended PV power
(for module STC) |
18000W |
19500W |
22500W |
| Max. DC voltage |
1100V |
| Start voltage |
160V |
| Nominal voltage |
580V |
| MPPT voltage range |
140V-1000V |
| No. of MPP trackers |
2 |
| No. of PV strings per MPP tracker |
1/2 |
| Max. input current per MPP tracker |
13/26A |
| Max. short-circuit current per MPP tracker |
16/32A |
| Output data (AC) |
| AC nominal power |
12000W |
13000W |
15000W |
| Max. AC apparent power |
13200VA |
14300VA |
16500VA |
| Nominal AC voltage (range*) |
220V/380V, 230V/400V (340-440V) |
| AC grid frequency (range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
| Max. output current |
20A |
21.7A |
25A |
| Adjustable power factor |
0.8leading…0.8lagging |
| THDI |
<3% |
| AC grid connection type |
3W+N+PE |
| Efficiency |
| MAX. efficiency |
98.60% |
| European efficiency |
98.20% |
| MPPT efficiency |
99.90% |
| Protection devices |
| DC reverse polarity protection |
Yes |

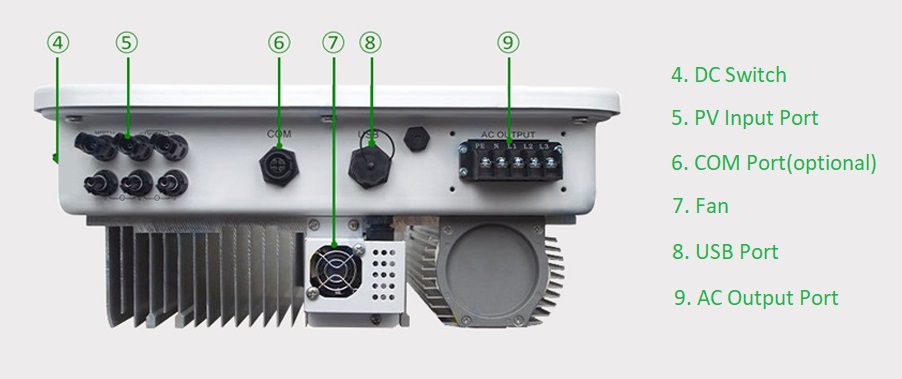

| DC Switch |
Yes |
| AC/DC surge protection |
Type II / Type II |
| Insulation resistance monitoring |
Yes |
| AC short-circuit protection |
Yes |
| Ground fault monitoring |
Yes |
| Grid monitoring |
Yes |
| Anti-islanding protection |
Yes |
| Residual-current monitoring unit |
Yes |
| String fault monitoring |
Yes |
| AFCI protection |
Optional |
| General data |

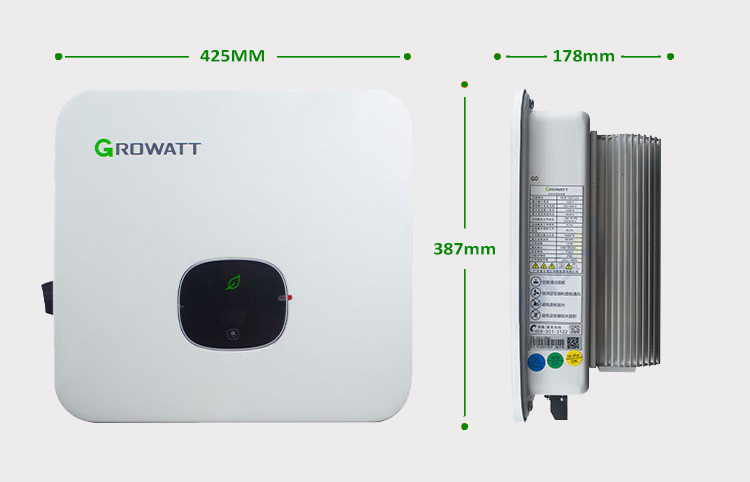

| Dimensions (W / H / D) |
425/387/178mm |
| Weight |
17kg |
| Operating temperature range |
–25°C … +60°C |
| Nighttime power consumption |
< 1W |
| Topology |
Transformerless |
| Cooling |
Natural convection |
| Protection degree |
IP66 |
| Relative humidity |
0~100% |
| Altitude |
4000m |
| DC connection |
H4/MC4(Optional) |
| AC connection |
Connector |

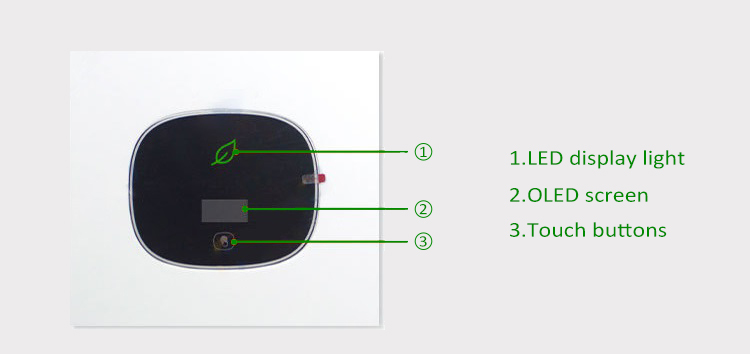

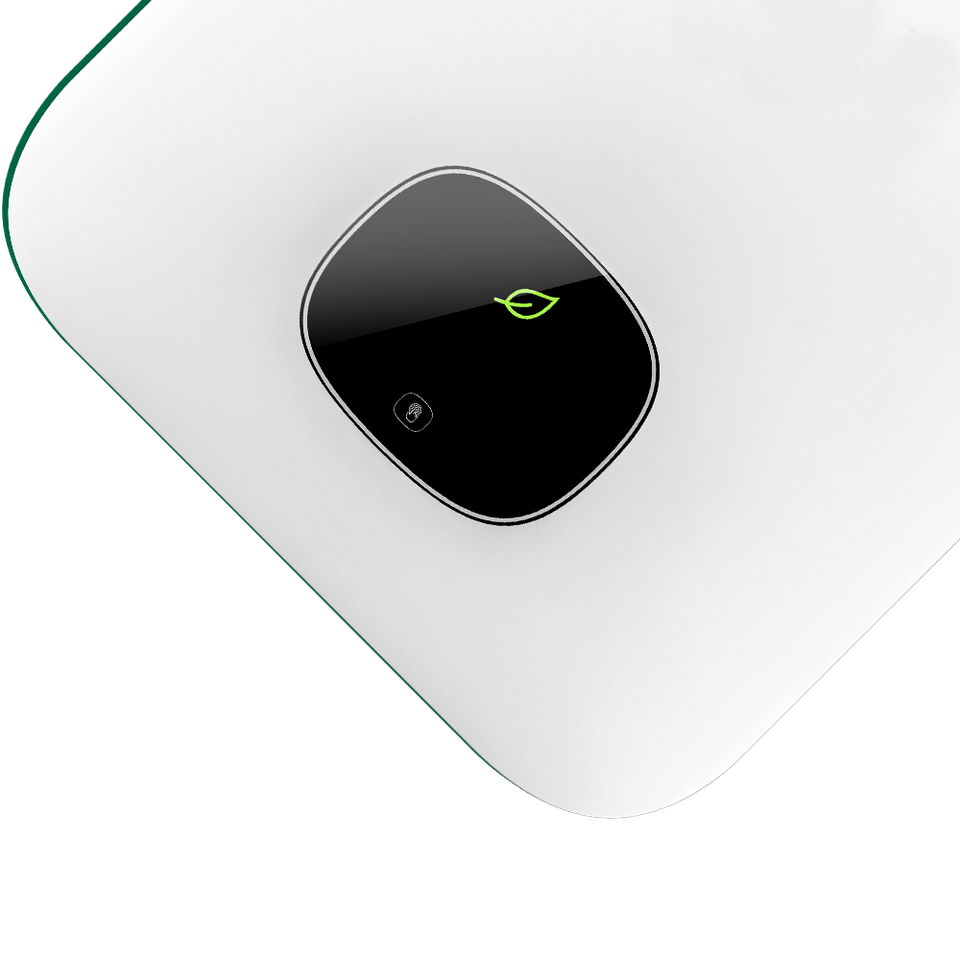

| Display |
OLED+LED/WIFI+APP |
| Interfaces: USB/RS485/WIFI /GPRS//LAN/RF |
yes/yes/Optional/Optional/Optional/Optional |
| Warranty: 5 / 10 years |
Yes/Optional |
| CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2 |
